One vial or a two-vial set. Bring your carton, tray and label together in a coordinated brand design—with practical sizes, real examples and clear quantities.
Choose a 3 mL or 10 mL presentation. Each uses its own single-cavity tray and matching outer carton.

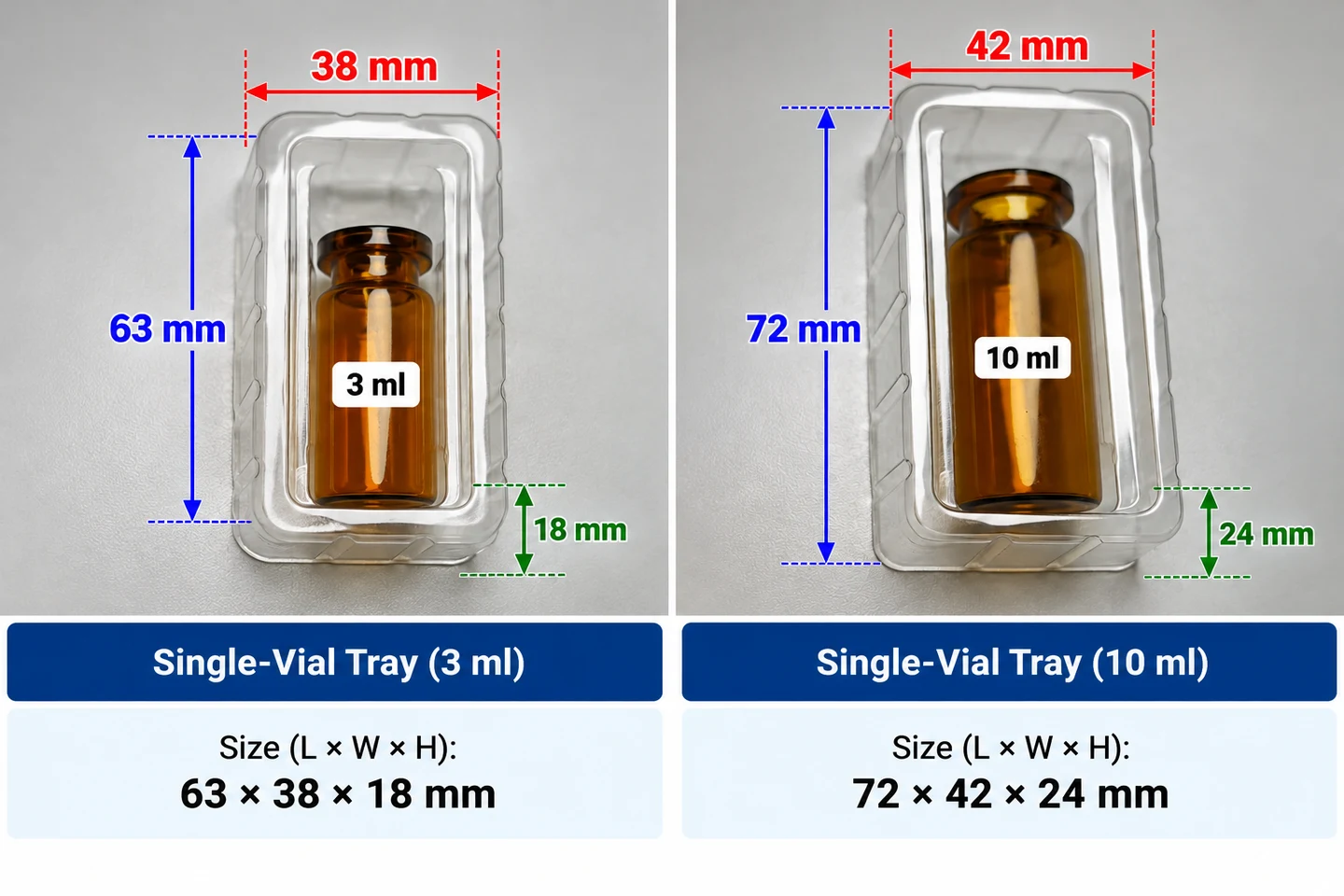

Single-vial tray comparison. Tray sizes are length × width × height—not bottle dimensions. View full image ↗
3 mL
SINGLE VIAL
Finished carton face width × depth × height
41 × 21 × 66 mm
Tray length × width × height
63 × 38 × 18 mm
Label width × height
40 × 20 mm
10 mL
SINGLE VIAL
Finished carton face width × depth × height
45 × 27 × 75 mm
Tray length × width × height
72 × 42 × 24 mm
Label width × height
50 × 30 mm

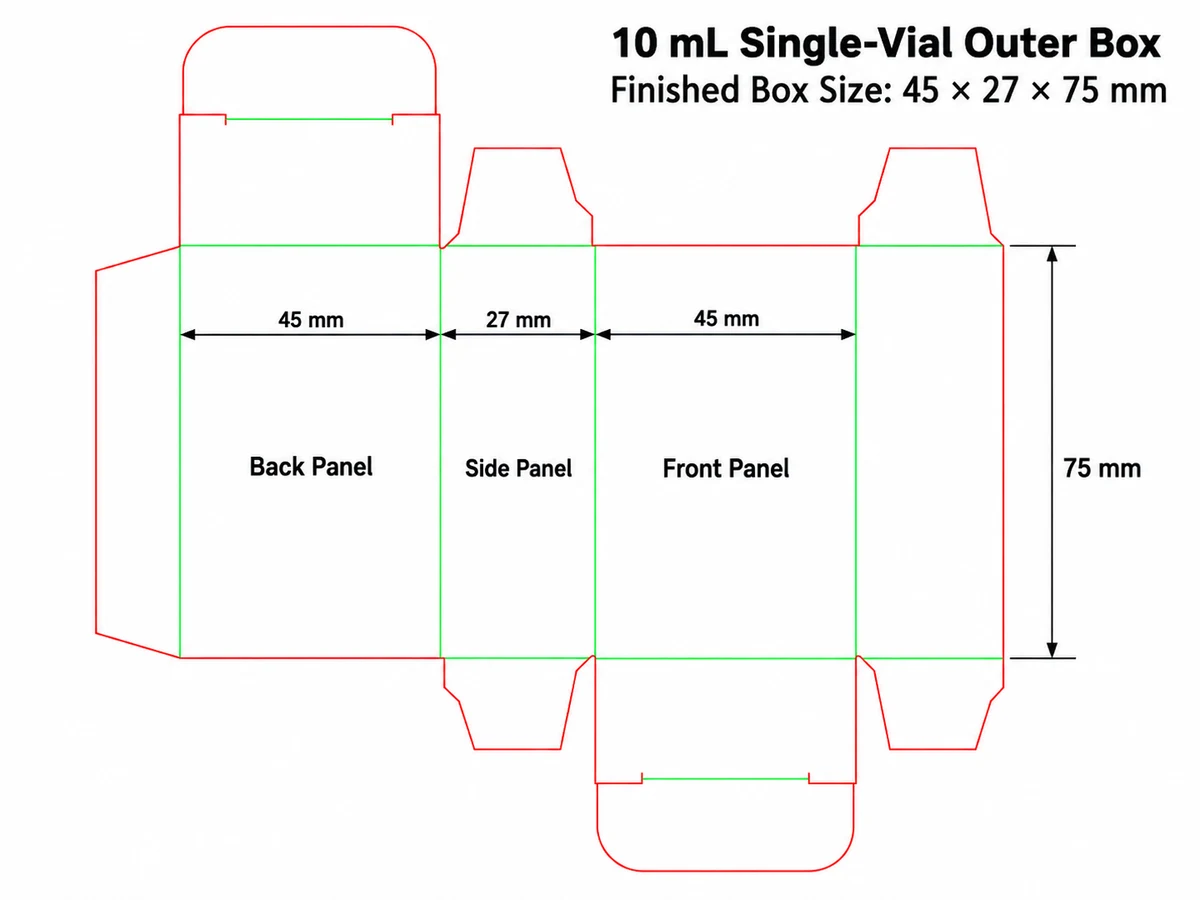

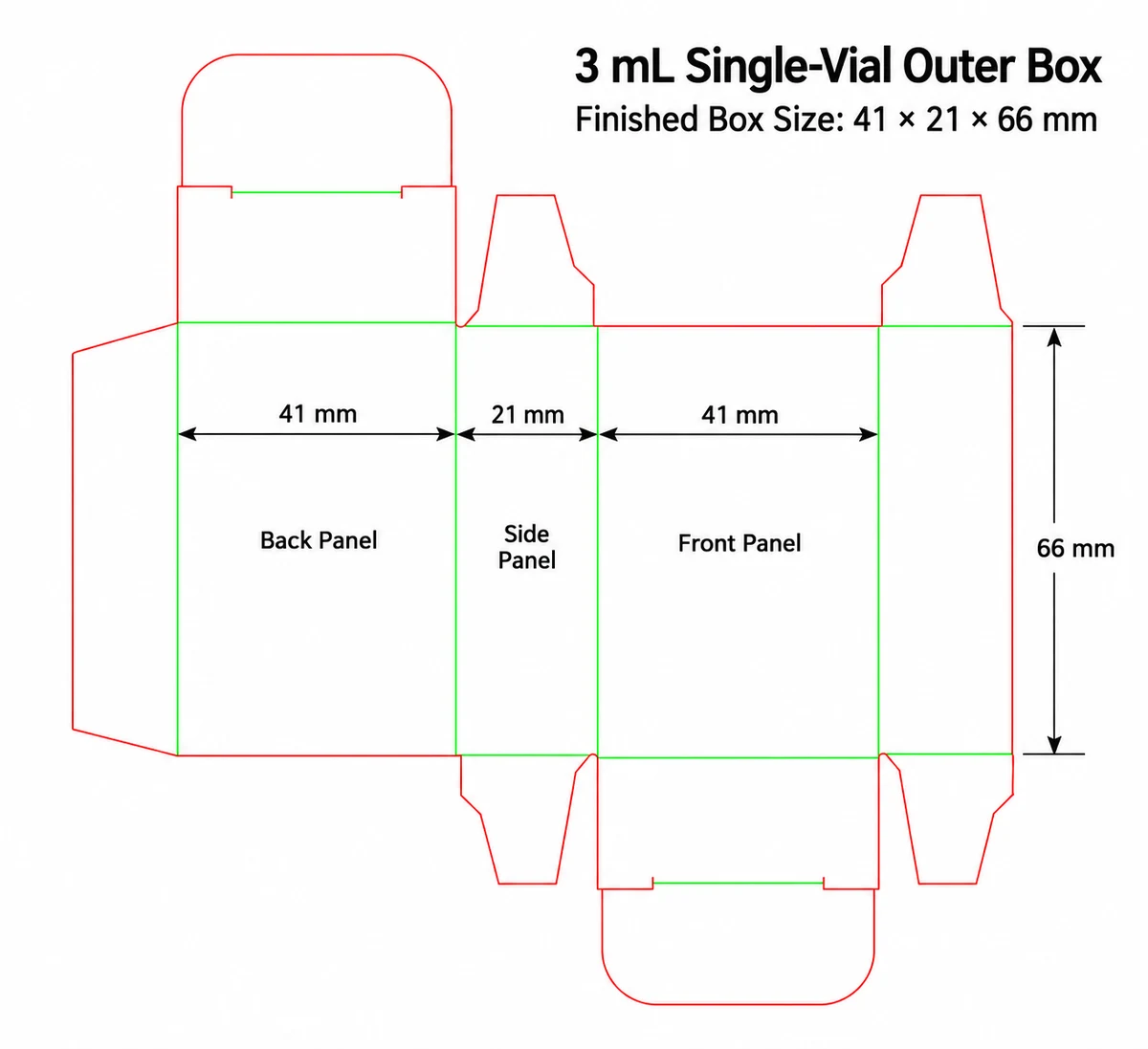

3 mL carton layoutView dieline reference +3 mL finished box: 41 × 21 × 66 mm. The full unfolded layout also includes flaps and the glue tab. View full image ↗10 mL carton layoutView dieline reference +10 mL finished box: 45 × 27 × 75 mm. The full unfolded layout also includes flaps and the glue tab. View full image ↗
The tray’s long side runs along the carton height. These drawings are dimensional references, not 1:1 print-ready files. Final fit is checked against the actual vial diameter and capped height.
02TWO-VIAL PACKAGING
Two vials. Three combinations.
A coordinated set for one lyophilized-powder vial and one water vial. Select the capacity combination before planning the carton artwork.
01
3 mL + 3 mL
Tray · L × W × H
55 × 55 × 17 mm02
3 mL + 10 mL
Tray · L × W × H
75 × 62 × 25 mm03
10 mL + 10 mL
Tray · L × W × H
79 × 65 × 25 mm

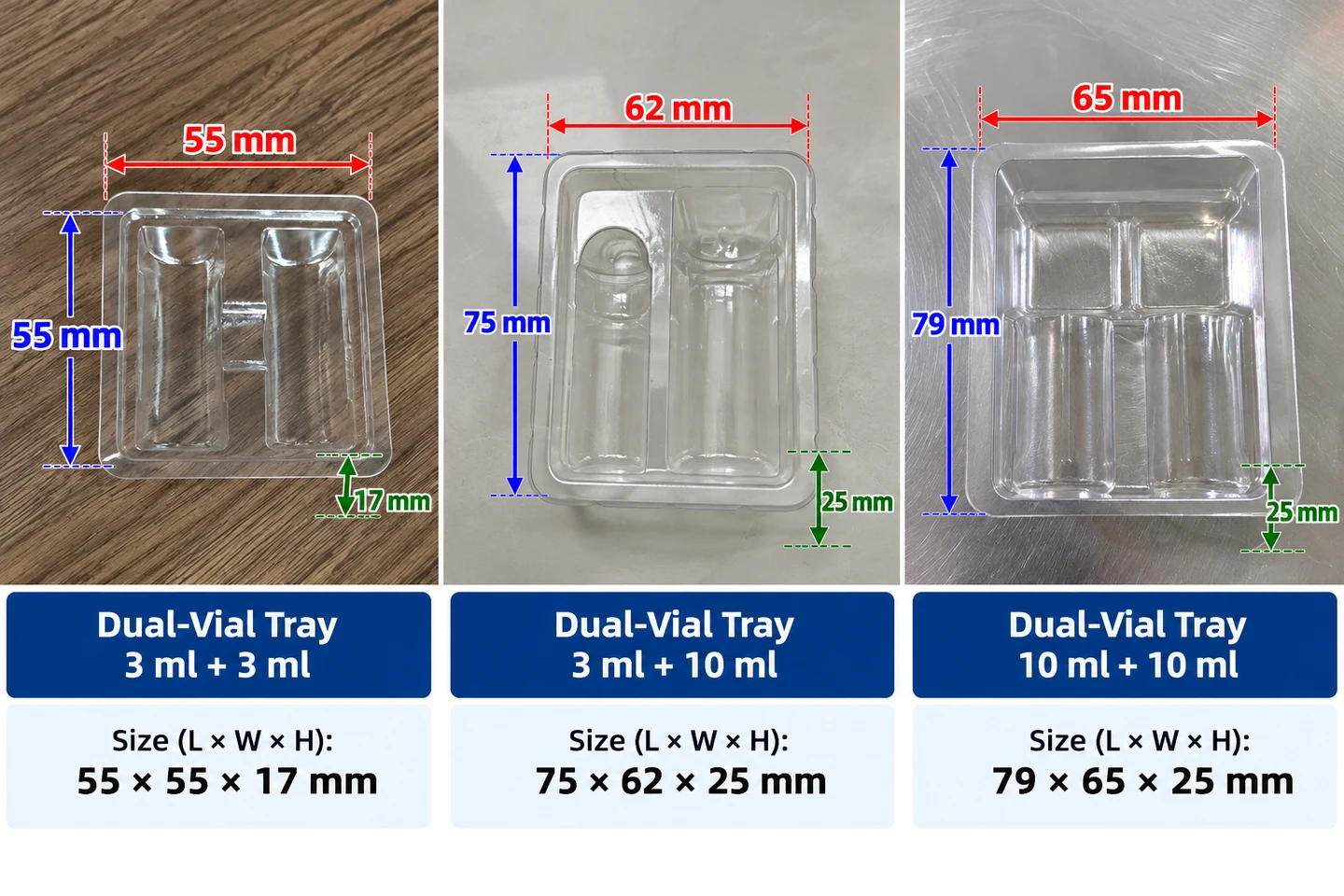

Compare the three clear two-vial trays. The measurements describe the trays, not the outer cartons. View full image ↗3 mL + 3 mL carton layout58 × 58 mm face · 20 mm side +
Give each panel a purpose.

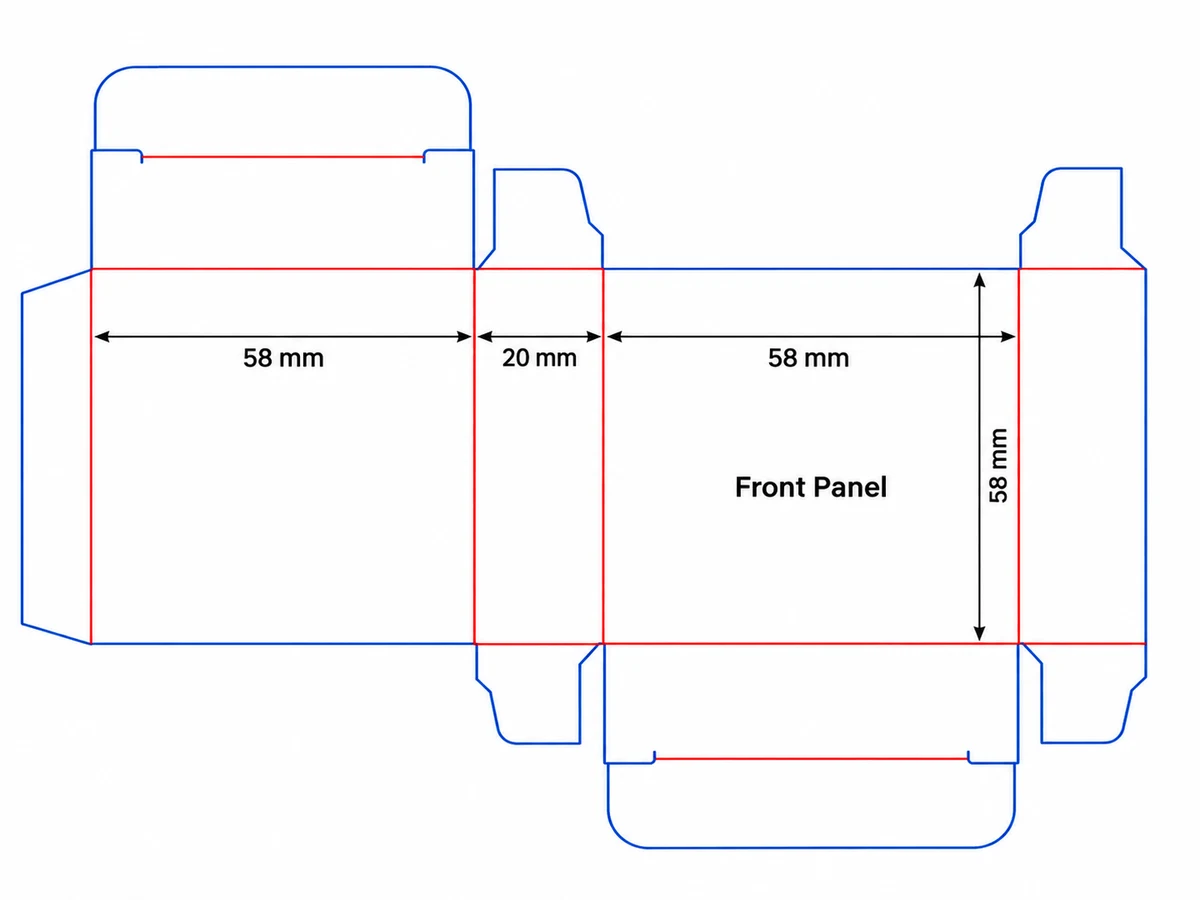

The 3 mL two-vial carton reference has a 58 × 58 mm main face and a 20 mm side panel. The full artwork includes the other panels, flaps and glue tab.
Carton dimensions for the 3 + 10 mL and 10 + 10 mL combinations are confirmed separately. Do not reuse the 3 + 3 mL carton size for those formats.
03CUSTOM PEPTIDE VIAL LABELS
A small label. A complete identity.
Carry your carton design onto the vial. Start with the label format, then arrange the brand, product details and other required information around the usable space.

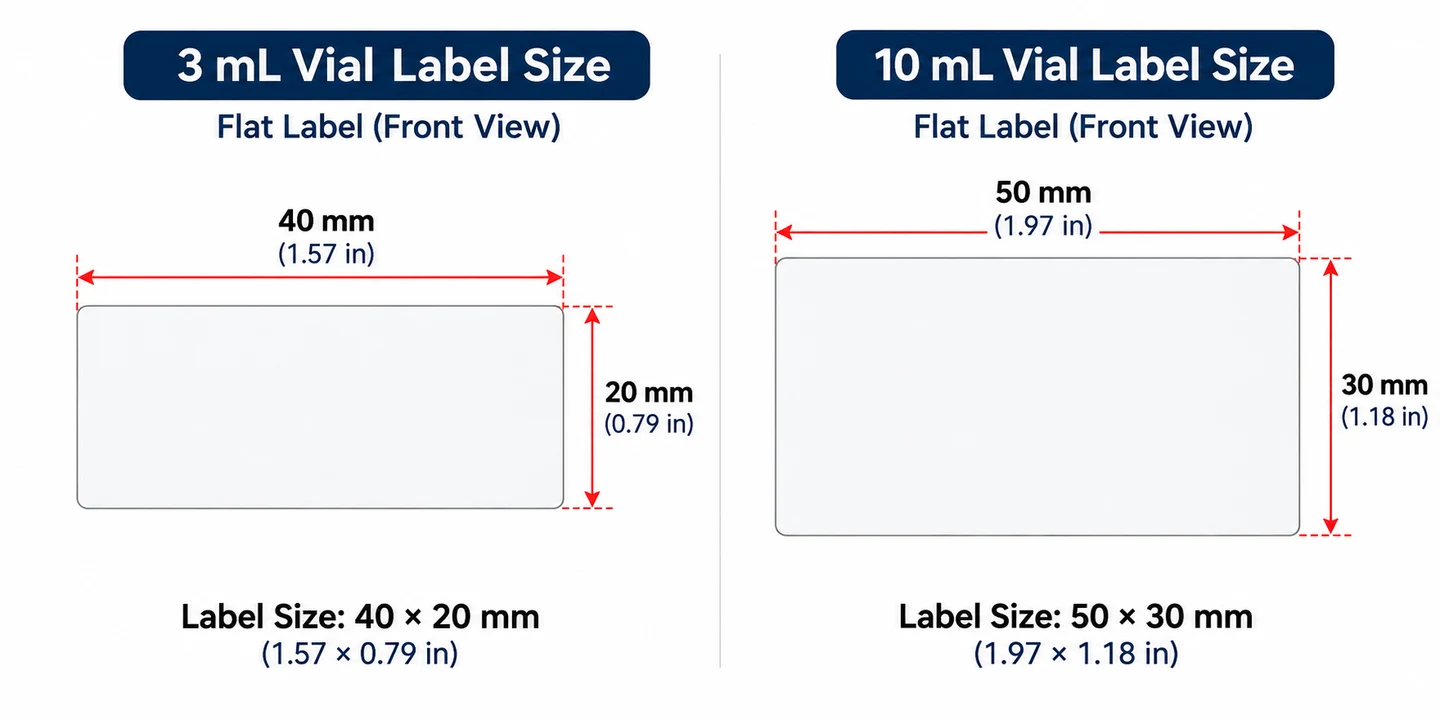

3 mL vial label40 × 20 mm
10 mL vial label50 × 30 mm
Flat label width × height. These are the illustrated formats, not universal sizes for every vial of the same capacity. View full image ↗Flat 3 mL label artwork reference. Brand name lightly mosaicked; the rest of the original design is retained. View full image ↗

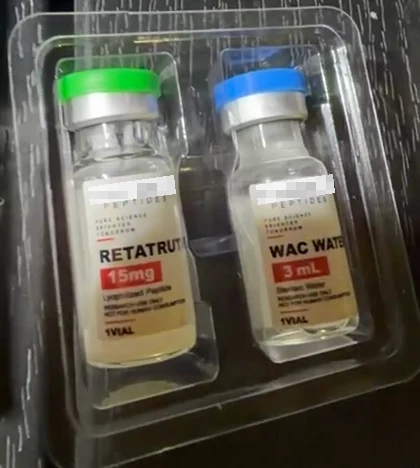

REAL VIDEO STILL
See the 3 mL label on the vial.
A close-up of the printed label and the two-vial presentation. The video frame shows the physical effect; the flat artwork shows the information layout.
Artwork and photo show different product specifications, not an exact SKU proof. Printed product and origin statements are customer artwork, not independently verified claims.
VIAL CAP CUSTOMIZATION
Vial cap colors. Made for your brand.
Choose a different cap color or discuss custom vial caps for your product line. We can also hold your custom caps in our warehouse for subsequent orders.
Vial cap color reference. Confirm your preferred color and the cap specification for your order. View full image ↗
Change the cap color
Use the color reference to tell us your preference. Confirm the selected color and cap fit for the vials in your order.
Request custom vial caps
Share your custom-cap requirements and quantity. We will confirm the design, specification and quotation with you.
Keep caps for future orders
Your custom vial caps can be stored in our warehouse and used for subsequent orders when you need them.
Cap customization is a separate option; the packaging-set prices below do not imply that custom caps are included. Contact us for cap quantities, pricing and storage arrangements.

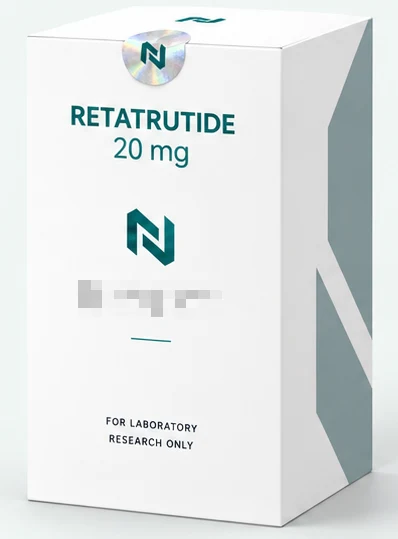

Add a round holographic sticker across the carton opening if it suits your presentation. Confirm the artwork, size and pricing as an optional item.
Shown: a 15 mm design reference and an applied-effect illustration. These images show appearance and placement, not tested anti-counterfeit or tamper-evident performance.
Use the unfolded artwork to understand panel placement, and real video stills to see how printed packaging looks in hand. Brand names use a light, local mosaic.

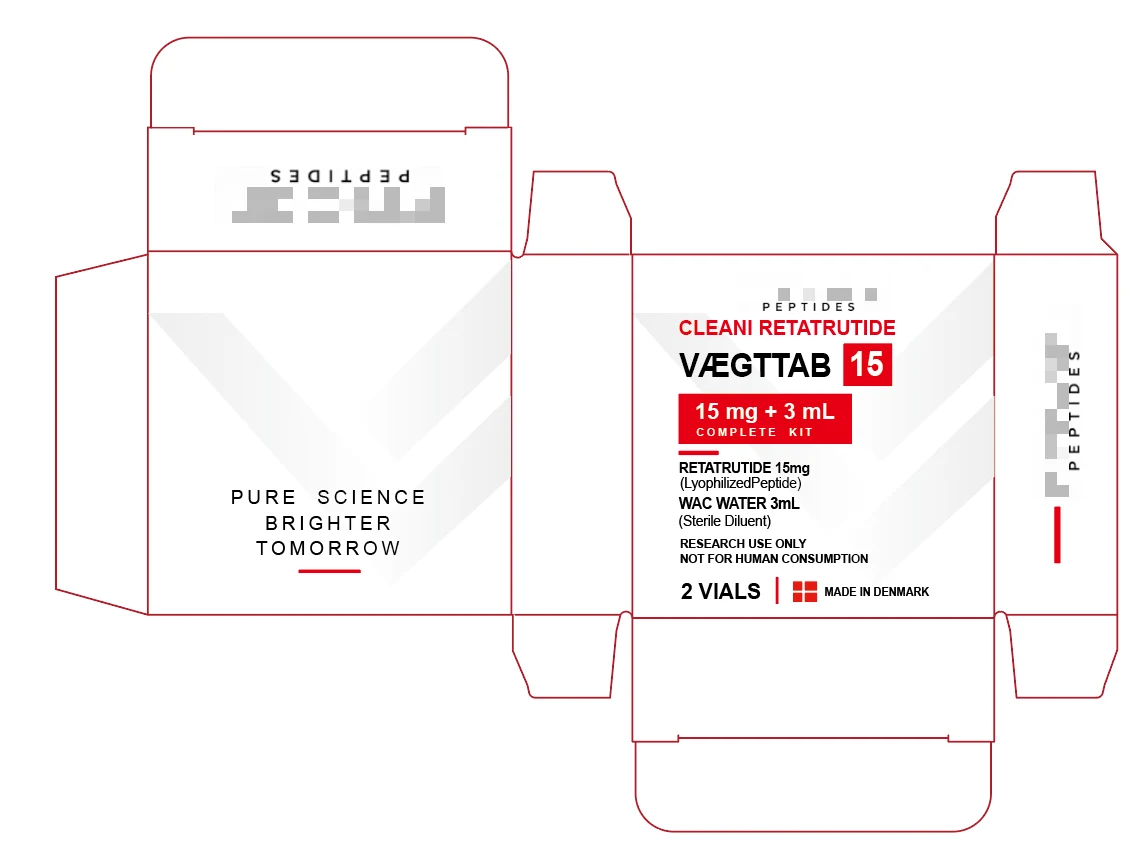

UNFOLDED CARTON ARTWORKTwo-vial carton artwork. View the front, back, side panels and flaps together. View full image ↗
REAL TWO-VIAL PRESENTATIONCarton and labeled vials from a customer video. Original framing retained. View full image ↗
More carton print referencesUnfolded layout & in-hand effect +

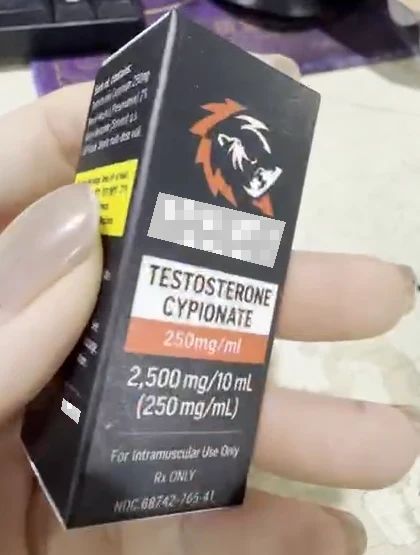

Full carton artwork, with the surrounding dimension explanations removed. View full image ↗Front-and-side finished carton view, selected from the video. View full image ↗
Non-peptide carton artwork is shown only as a print-presentation reference. These two examples are not an exact product or dimension match. Original printed medical, quality and origin statements are not verified service claims.
05PACKAGING SET PRICING · USD
Count each product specification separately.
The minimum is 20 packaging sets per product specification. Prices are based on the quantity of that specification—not the combined total across your catalogue.
20 sets
PER PRODUCT SPECIFICATION
$2.00USD / set
Minimum starting quantity
100 sets
PER PRODUCT SPECIFICATION
$1.00USD / set
Per product specification
1,000 sets
PER PRODUCT SPECIFICATION
$0.50USD / set
Per product specification
100 total sets ≠ 100 sets of one specification.
For example, 5 specifications × 20 sets = 100 total sets. Each specification remains at 20 sets; the $1.00 price for 100 sets per specification does not apply.
Many specifications, small quantities?
A common brand design may help reduce costs. Contact us to discuss the details ↗ This does not automatically combine specifications for pricing.
Packaging price reference only. Confirm the selected single- or two-vial format, included components, optional seals and final quotation with us. Product contents, freight, taxes and every optional item are not implied to be included.
PREPARE YOUR BRAND MATERIALS
Design for print. Not just for the screen.
Share your logo, product information, preferred visual direction and confirmed CMYK values. We provide free design support for the packaging project and review the layout with you before production.
Vial format and the number of vials per box
Product specifications and sets needed for each
Logo, brand direction and C / M / Y / K values
Label and carton information to be checked together
Reference PNGs and screen colors are not print-ready production files. Final artwork and vial fit need confirmation.

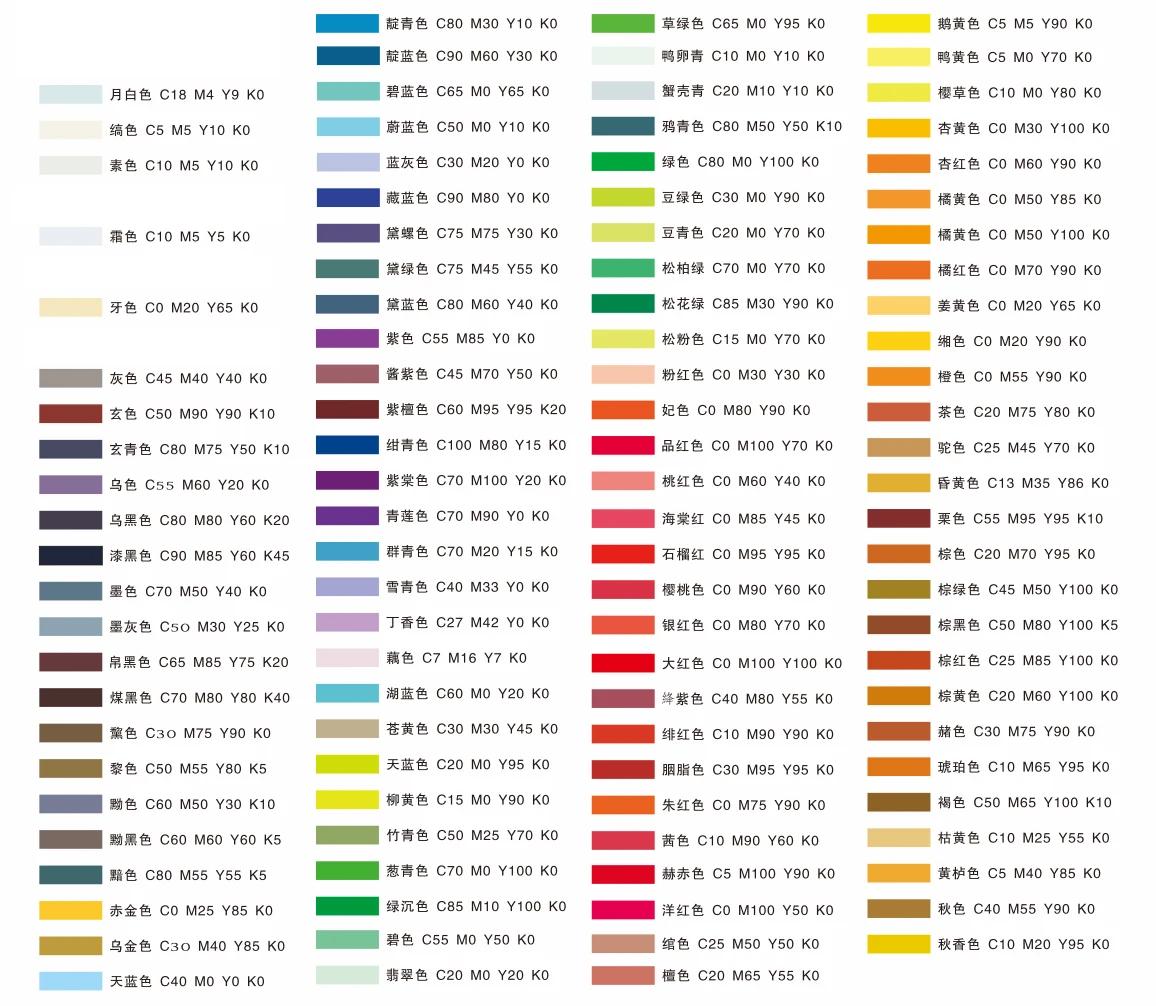

CMYK value referenceOpen color chart +A numeric color reference supplied for planning. The displayed image itself is not a CMYK production file or a printed color proof. View full image ↗
BEFORE YOU REQUEST A QUOTE
Good questions. Clear answers.
What makes up a complete vial packaging set?+
The usual set has an outer paper carton, a fitted tray and a vial label. A holographic carton seal is optional. Confirm the selected format, included components and optional items in your written quotation.
Can different products be combined to reach a lower price?+
No. Quantities are calculated separately for each product specification, not across the total order. Five specifications with 20 sets each do not qualify for the 100-set-per-specification price. If you have many specifications and a small total quantity, contact us about a common brand design that may help reduce costs.
Are these dimensions suitable for every 3 mL or 10 mL vial?+
These are reference dimensions for the illustrated formats, not universal sizes. We need to check the actual vial diameter, total capped height and label area before confirming fit. Tray measurements, finished carton dimensions and label dimensions describe different parts.
Do you provide design support?+
Yes. We provide free design support for this packaging project using your brand materials and requirements. Print artwork uses confirmed CMYK values. Both sides check and approve the design before formal production.
How long does design and production take?+
The complete design and production cycle normally takes 3–7 business days. This is the combined cycle, not an additional 3–7 days of production after design approval, and it is not a shipping or arrival-time promise.
Can I change the vial cap color?+
Yes. Tell us your preferred color and vial format so we can confirm the cap option and fit for your order. Custom vial caps can also be discussed separately.
Can you store my custom vial caps for later orders?+
Yes. We can store your custom vial caps in our warehouse and use them for subsequent orders when requested. Contact us to agree the cap specification, quantity and storage arrangements.
